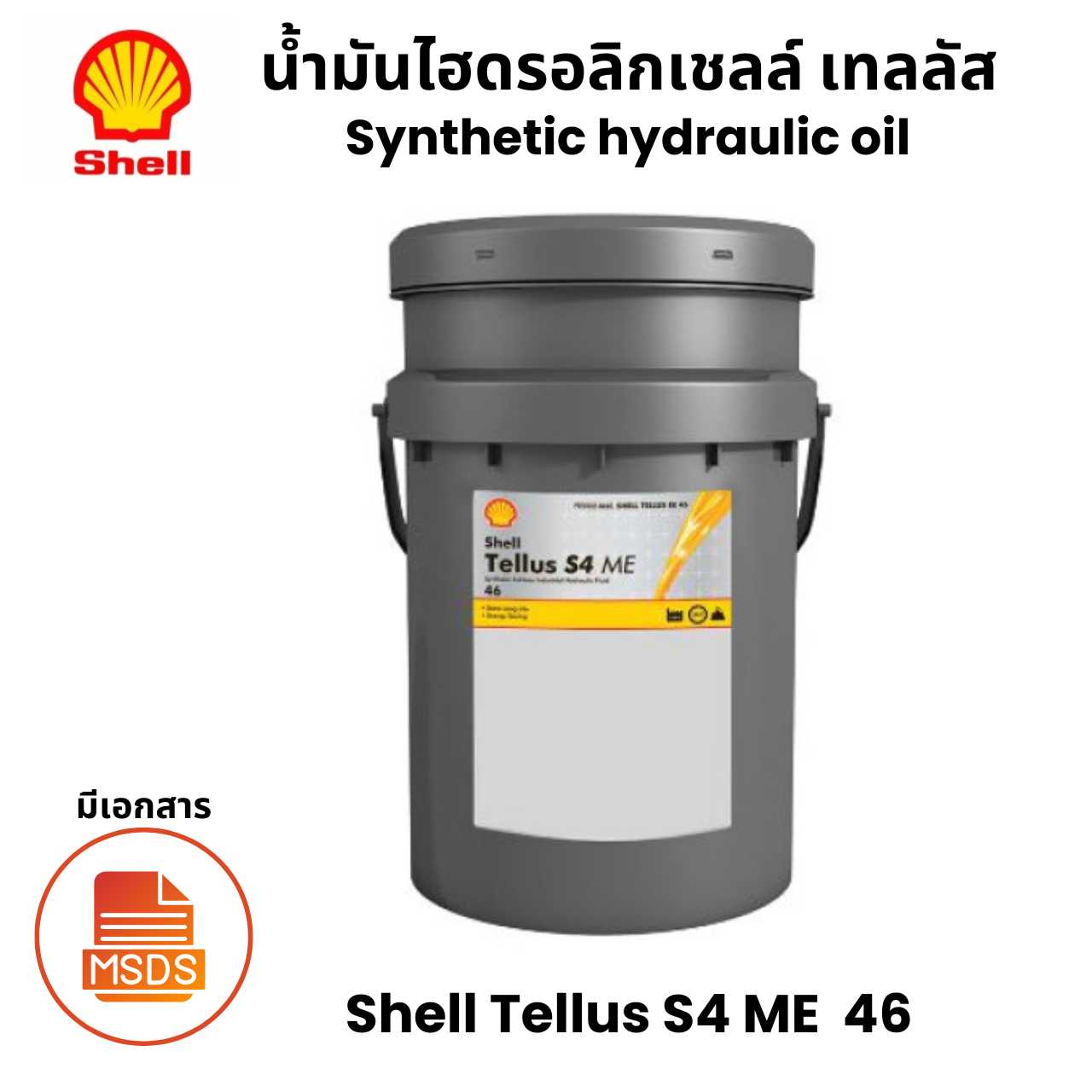

Shell Tellus S4 ME 46 น้ำมันไฮดรอลิกเชลล์ เทลลัส
09 พฤศจิกายน 2567
ผู้ชม 9 ผู้ชม
Shell Tellus S4 ME 46 น้ำมันไฮดรอลิกเชลล์ เทลลัส
20 ลิตร
Designed to increase system efficiency and protect system components, Shell Tellus S4 ME 46 is an advanced synthetic industrial hydraulic fluid that has shown one to four percent energy savings in monitored field tests. The Tellus S4 ME 46 fluid features a specially developed formula that balances its flow, frictional and power transmission, resulting in enhanced system efficiency, and offers resistance to breakdown when in contact with water and contaminants. The fluid is particularly suitable for systems that require high intensity hydraulic power usage, such as metal pressing and injection molding operations.
Energy efficiency With the help of sophisticated system modelling, Shell Tellus S4 ME has been designed to improve the energy efficiency of hydraulic systems through a specially developed formulation that balances the flow, frictional and power transmission characteristics of the fluid. Carefully monitored field evaluations have shown typical savings of 1-4% in such applications. 1. Average of Shell and end-user evaluations. Actual energy savings may vary depending on application, current oil used, maintenance procedures, condition of equipment, operating conditions and intensity of hydraulic power usage Reduce maintenance costs Shell Tellus S4 ME offers outstanding performance in all the properties relevant to a hydraulic fluid such as hydraulic pump wear and resistance to breakdown in contact with water or other contaminants. Together with an oil life that exceeds the 10,000 hours maximum duration that can be measured in the industry Turbine Oil Stability Test (TOST), Shell Tellus S4 ME offers you the capability to significantly extend oil change intervals, which can help reduce overall maintenance costs. Greater equipment protection In addition to meeting standard industry and OEM specification requirement, Shell Tellus S4 ME provides an exceptional level of additional protection. For instance, Shell Tellus S4 ME results in up to 68% less wear in the Vickers V104C pump wear test than the 50 mg pass/fail limits for many OEMs such as Cincinnati Machine (Pspecification), Bosch-Rexroth (RD 90220-1) and Eaton (Vickers). Superior cleanliness (meeting the requirements of ISO 4406 21/19/16 class or better ex Shell filling plants. As recognized by DIN 51524 specification, the oil is exposed to various influences with transport and storage that could effect the cleanliness level). Together with outstanding protection against sludge build up, valve sticking and corrosion, it can help prolong the life of your hydraulic equipment.
Shell Tellus S4 ME hydraulic fluids are designed to help users improve the energy efficiency of their hydraulic systems without compromising the protection of the system or maintenance procedures of their equipment and operations. Shell Tellus S4 ME has been demonstrated to improve energy efficiency in a wide range of applications such as plastic injection moulding, metal pressing, and mining conveyors. In addition, Shell Tellus S4 ME is also designed to help equipment service life and lower maintenance costs through providing outstanding wear protection and long oil life capability.
Main Applications
Industrial hydraulic systems
Particularly suitable for those systems with high intensity of hydraulic power usage such as injection moulding and high pressure metal pressing operations and where resistance to high temperatures or long oil life is required.
Mobile hydraulic systems
Shell Tellus S4 ME is also suitable for use in certain mobile hydraulic fluid power transmission systems and in marine applications and provides superior low temperature fluidity compared to most conventional ISO HM type fluids.
Environmental impact
Shell Tellus S4 ME oils provide a reduced environmental impact in the case of leakage or accidental spillage compared to conventional zinc-based hydraulic fluids through the use of ashless anti-wear technology and low sulphur base oils.
For further reductions in environmental impact we offer the Shell Naturelle range of reduced environmental impact lubricants.
Specifications, Approvals & Recommendations
- Denison Hydraulics (HF-0, HF-1, HF-2) Cincinnati Machine P-68 (ISO 32), P-70 (ISO 46), P-69 (ISO 68)
- Eaton Vickers M-2950 S
- Eaton Vickers I-286 S
- BoschRexroth
- Arburg (Injection moulding applications)
- ASTM D6158 (HM fluids)
- ISO 11158 (HM fluids)
- DIN 51524 Part 2 HLP type
- Swedish Standard SS 15 54 34 AM
- AFNOR NF-E 48-60
- Krauss Maffei
For a full listing of equipment approvals and recommendations, please consult your local Shell Technical Helpdesk, or the OEM Approvals website.
Compatibility & Miscibility
Compatibility
Shell Tellus S4 ME fluids are suitable for use with most hydraulic pumps. However, please consult your Shell Representative before using in pumps containing silver plated components.
Fluid Compatibility
Shell Tellus S4 ME fluids are compatible with most other mineral oil based hydraulic fluids. However, mineral oil hydraulic fluids should not be mixed with other fluid types (e.g. environmentally acceptable or fire resistant fluids).
